Measures

Custom build a Measure to display in multiple A3's, Goals, Tier Boards or just to exist on its own. Capturing and sharing key performance information in real time.

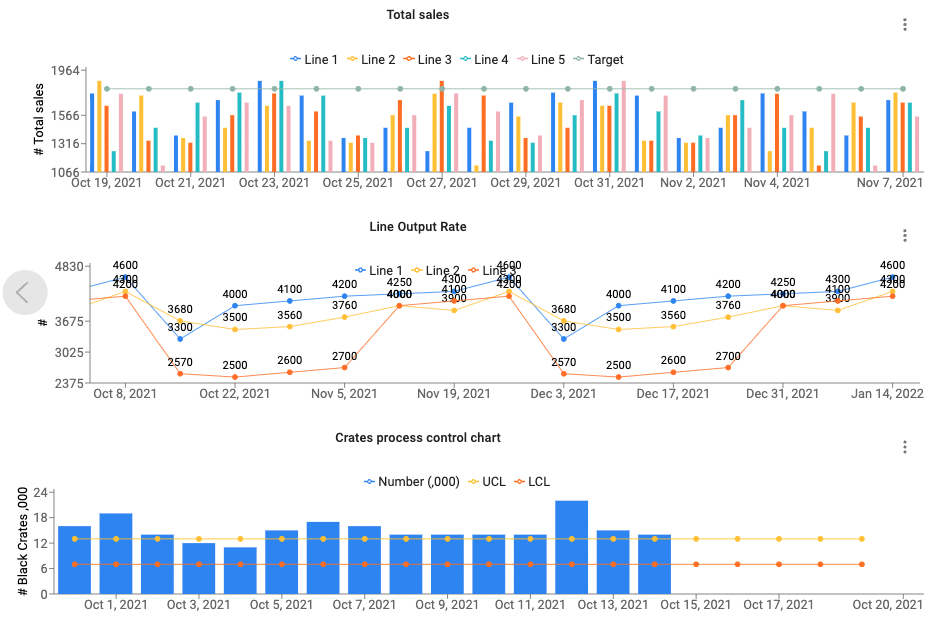

  • Chart Types Run/Control, Target vs Actual or Multi-line
  • Multi-line Measures

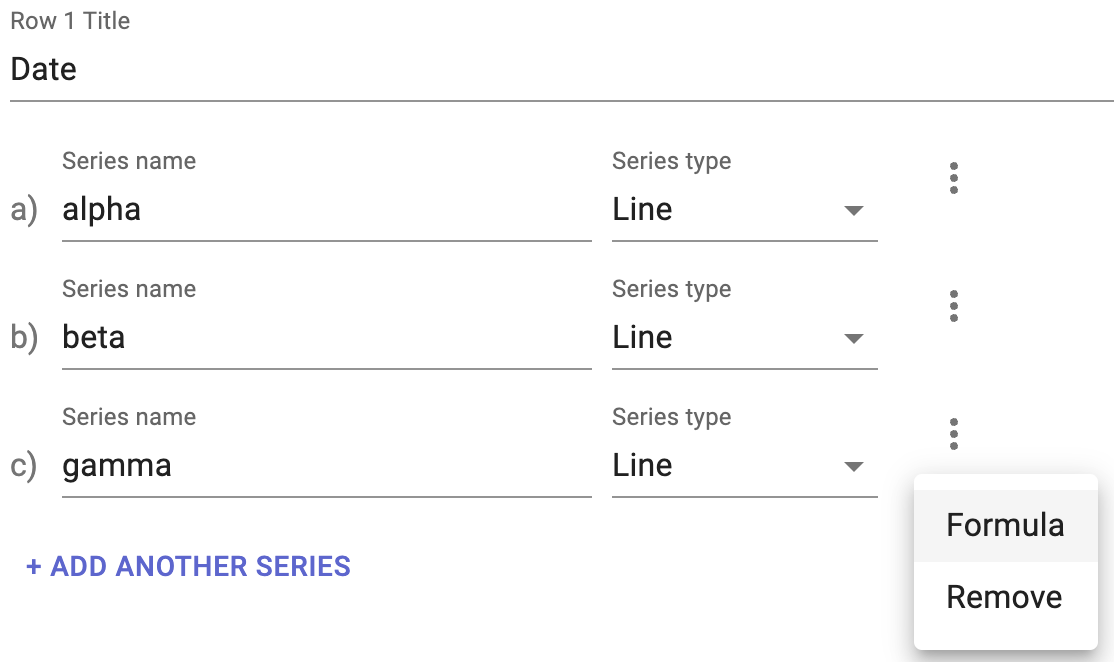

    • Each series can be auto-populated using a calculation (Formula)
    • or set a rule to trigger Conditional Formatting (change color or flag based on a trend)

  • Measure Types: Count (C Chart), % (P Chart), Rate (U Chart), Individual (I Chart) Cases between Events (G Chart), Time between Cases (T Chart)
  • Frequency: Daily, Weekly, Monthly and No set timing

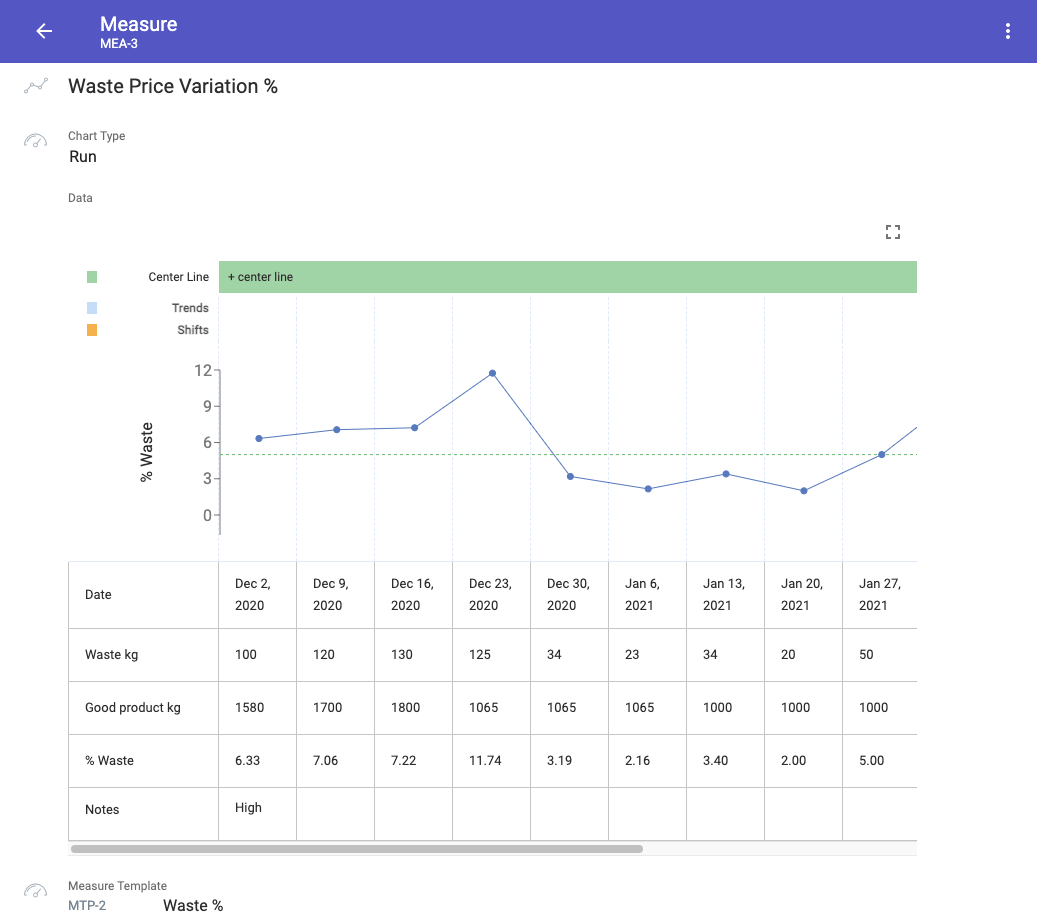

  • Trends and Shifts: highlighted automatically. A Trend is a continuous number of data points in an up or down direction. A Shift is a number of points all above or all below the Centreline (CL)
  • Freeze the Centreline by clicking on the "+ Phase" option to add title and set date range
  • Add Notes to a Measure
  • Edit a Measure Template Vertical axis labels, Series type, Formulas, Series name, Numerator and Denominator definitions. Editing a template will automatically update all existing Measures
  • Delete Measure Columns: Click on the first and last columns of a Measure to delete
  • Aggregate Measure: Measures of the same type can be tallied and viewed in an Aggregate Measure. Hover over the date / total contributors to see "who" is contributing. Turn on/off contributing measures in the Aggregate contributors list

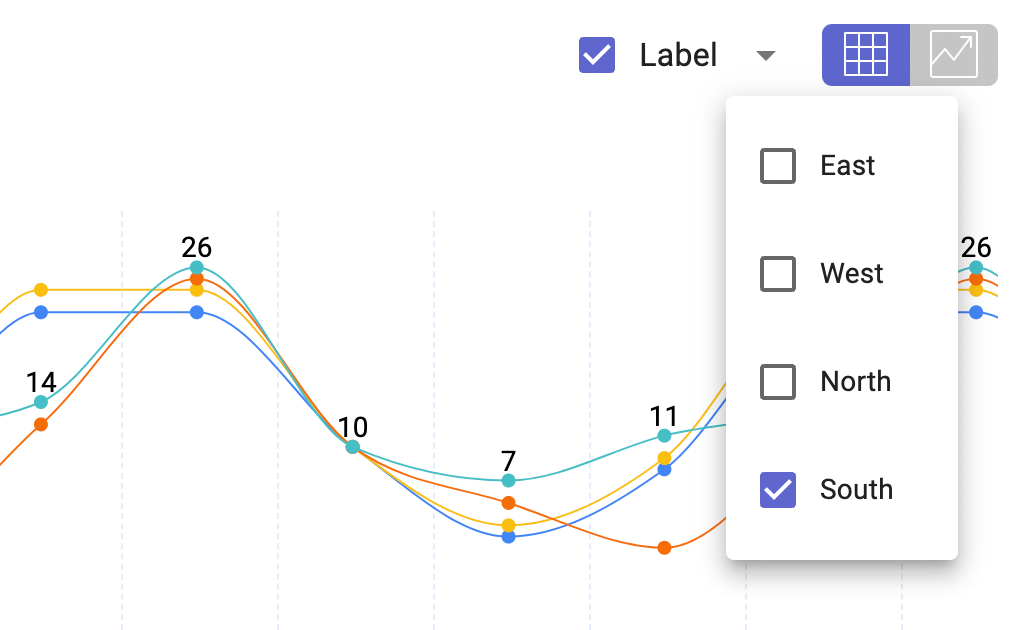

  • Measure Labels Toggle data labels in Measure series

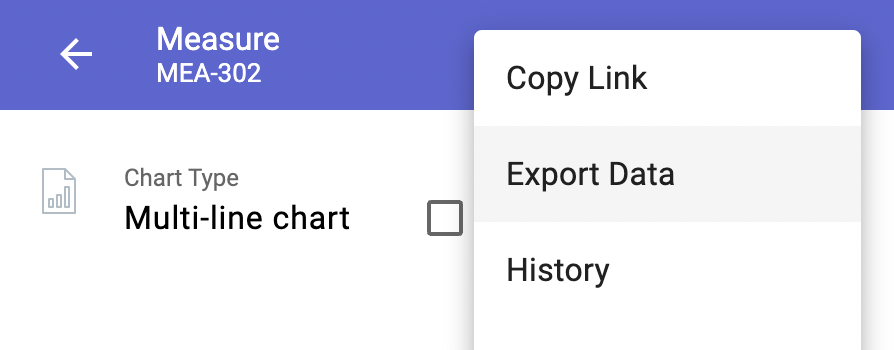

  • Export Measure Data: Export Data for Measure tables. Click on the Overflow menu (three dots) to see this option.

  • Export Measure Data: Export Data for Measure tables. Click on the Overflow menu (three dots) to see this option.


There's 2 steps in building a Measure

Step 1 - Build a Measure Template

Step 2 - Create the Measure

Display the Measure

  • In your A3 Report or Custom Activity. Select + add in the section header
  • Select "Activity" and type the Measure I.D (MEA-1) into the "Search Activities" field
  • Select and Save



Displayed Measure: To remove or change settings click on the 3 vertical dots to reveal "Settings" and "Remove" options.  "Settings" 'Fit to display' setting OFF will default to the most recent data entry (instead of the first data entry)

Optimise the opening speed of Measures embedded in Dashboard or Tier Board - contact support@teamassurance.com to enable.
